🚀 Step-by-Step IPSec Setup Using FortiGate Firewall [2025 Guide]

In today’s cyber-threat landscape, securing your data as it travels between networks is vital. One of the most effective ways to do this is by using an IPSec VPN (Internet Protocol Security Virtual Private Network), and FortiGate Firewalls provide a robust platform for implementing this solution.

This guide walks you through setting up IPSec on FortiGate, helping you protect your business communications effectively and efficiently.

🔐 What Is IPSec and Why Use It?

IPSec (Internet Protocol Security) is a suite of protocols designed to secure Internet Protocol (IP) communications by authenticating and encrypting each IP packet in a communication session. It operates at the network layer and supports site-to-site or remote access VPNs.

Key Features of IPSec:

• Encryption of data packets
• Authentication of users
• Data integrity checks
• Protection against replay attacks

🎯 Benefits of IPSec VPN

• End-to-End Encryption: Data is encrypted between endpoints.
• Compatibility: Works across different firewall vendors and OS platforms.
• Scalability: Ideal for connecting branch offices or remote employees.
• Security Compliance: Meets data protection regulations (HIPAA, GDPR).

🛡️ Introduction to FortiGate Firewalls

FortiGate is a high-performance firewall developed by Fortinet, offering advanced security features including:

• Deep packet inspection
• Web filtering
• Intrusion prevention
• SSL VPN and IPSec VPN support

It features a user-friendly GUI and powerful CLI for advanced configurations.

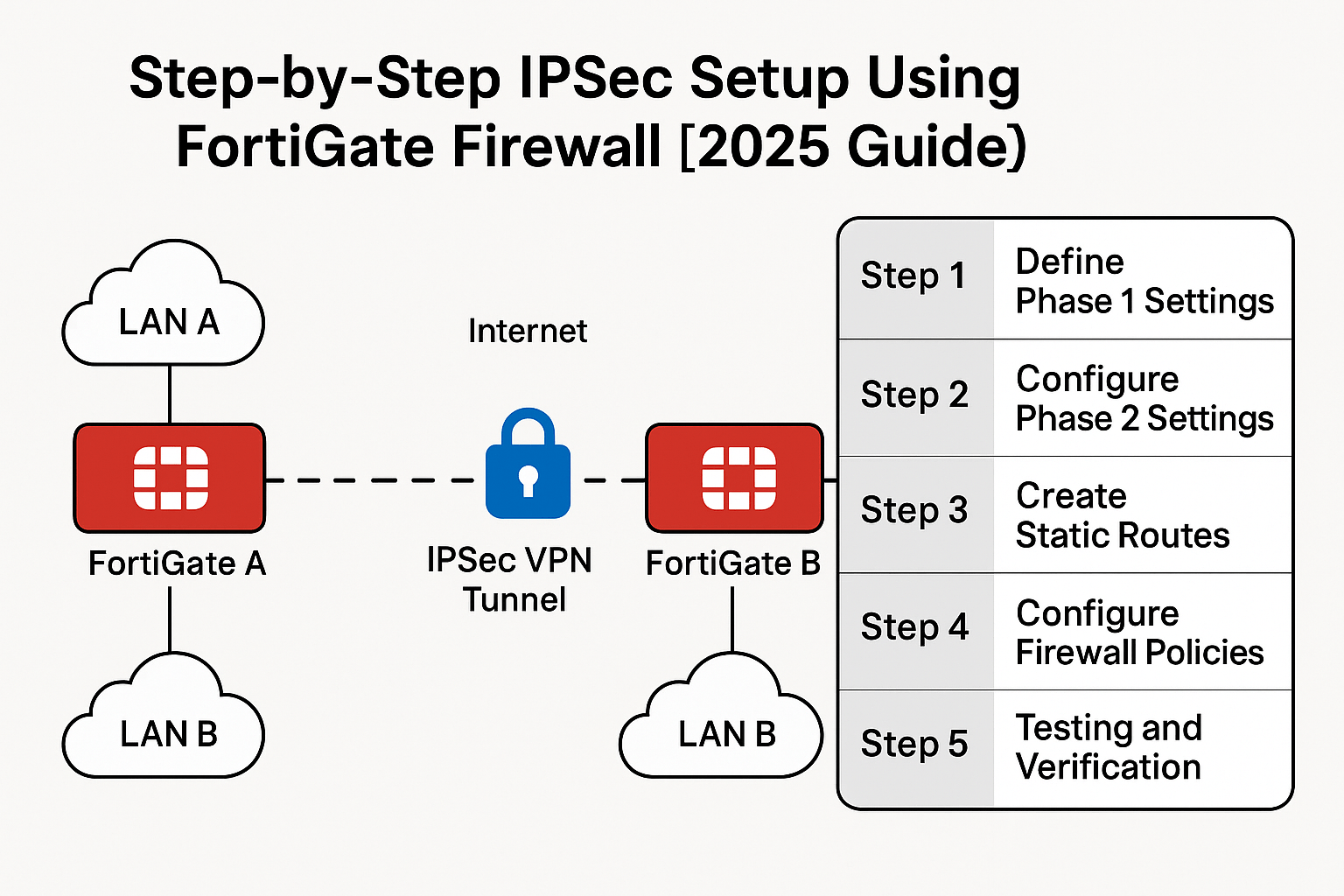

🌐 Network Topology for IPSec Setup

A typical site-to-site IPSec setup involves two FortiGate devices connecting different office locations through a secure tunnel over the internet.

[ LAN A ] — [ FortiGate A ] == Internet == [ FortiGate B ] — [ LAN B ]

Each side must have a public IP and private subnet defined for traffic routing.

🧰 Pre-Configuration Requirements

Before you start, make sure:

• Both FortiGate devices are accessible and updated
• You have static or dynamic public IP addresses
• LAN subnet IPs are defined and do not overlap
• Remote peer IP and shared secret are decided

🛠️ Step-by-Step IPSec VPN Setup on FortiGate

✅ Step 1: Define Phase 1 Settings

Navigate to:
VPN > IPsec Tunnels > Create New

• Name: Site_A_to_Site_B
• Remote Gateway: Enter the peer’s public IP
• Authentication Method: Pre-shared key
• IKE Version: v1 or v2
• Encryption & DH Group: AES256, SHA256, DH Group 14

✅ Step 2: Configure Phase 2 Settings

• Local Subnet: 192.168.1.0/24 (Site A)
• Remote Subnet: 192.168.2.0/24 (Site B)
• Protocols: ESP, AES256 encryption, SHA256 authentication
• Enable replay detection and PFS (if desired)

✅ Step 3: Create Static Routes

Navigate to:
Network > Static Routes

• Add a route to the remote subnet via the IPSec tunnel interface

✅ Step 4: Configure Firewall Policies

Navigate to:
Policy & Objects > IPv4 Policy

• Create a policy to allow traffic from LAN to the VPN tunnel
• Create a reverse policy from tunnel to LAN

✅ Step 5: Testing and Verification

Use tools like:

• CLI Ping Command: execute ping 192.168.2.1
• Monitor VPN Status: VPN > Monitor > IPsec Monitor
• Logs and Debug:
  • diag debug enable
  • diag debug app ike -1

⚙️ Advanced IPSec Options

• Dead Peer Detection (DPD): Detect and respond to dropped connections.
• Failover and Redundancy: Set up a secondary VPN tunnel as a backup.
• Hub-and-Spoke Configurations: Useful for connecting multiple branch offices.

🧯 Common Issues and Troubleshooting Tips

Issue	Possible Cause	Fix
VPN won’t establish	Incorrect shared key	Recheck both ends
No traffic over tunnel	Policy or route missing	Check IPv4 policies
Phase 1 failed	Mismatch in encryption settings	Align Phase 1 settings
Can’t reach remote LAN	Wrong subnet or NAT enabled	Disable NAT on VPN policy

💻 FortiGate CLI vs GUI for IPSec

Feature	GUI	CLI
User-Friendliness	✅	❌
Advanced Config	❌	✅
Batch Configuration	❌	✅
Debugging	❌	✅

Use GUI for basic setups and CLI for fine-tuned configurations or automation.

❓ FAQs About FortiGate IPSec Configuration

Q1: Can I use dynamic IPs with IPSec?
Yes, FortiGate supports DDNS and dynamic IP peers.

Q2: What’s the best encryption for IPSec?
AES256 with SHA256 is widely accepted as secure and efficient.

Q3: How many IPSec tunnels can FortiGate handle?
Depends on model—FortiGate 60F can handle up to 200 tunnels.

Q4: Is IKEv2 better than IKEv1?
Yes. IKEv2 offers better stability, faster reconnections, and mobility support.

Q5: Can I monitor tunnel uptime?
Yes, under VPN > Monitor > IPsec Monitor.

Q6: What logs should I check if VPN fails?
Use CLI: diag debug app ike -1 and diag debug enable.

🔚 Conclusion: Why FortiGate + IPSec Is a Winning Combo

Setting up an IPSec VPN on FortiGate is both simple and powerful. With proper planning, correct configuration, and ongoing monitoring, you can secure your business communications, protect sensitive data, and ensure network integrity.

Thank you.
